Magnum Filters produce a full range of spa pool and swimming pool filter cartridges. As well as pleated cartridges for the water purification industry.
Click Here to download 'Filter ID Form'
If you are a spa/pool manufacturer or distributor, we can design and manufacture filter cartridges to your specific requirements. Click here to submit your requirements.
Search for products*
*You will be supplied with search results that are + and - 5mm within your search criteria.
| D125 | |
|---|---|
| Description | DIMENSION ONE 25 |
| Diameter(mm) | 118 |
| Length(mm) | 304 |
| Top | Handle |
| Bottom | 40mm SAE (coarse) THREAD |
| Replaces | |
|---|---|
| Pleatco | PDO-UF25P2 |
| Unicel | 4CH-950 |
| Filbur | FC-0173 |
| OEM | 74408-99 |
| Other | |
| D15259 | |
|---|---|
| Description | DIMENSION ONE 52 59mm |
| Diameter(mm) | 178 |
| Length(mm) | 267 |
| Top | Handle |
| Bottom | 59mm MPT(fine) Thread |
| Replaces | |
|---|---|
| Pleatco | PTL55XW-F2M |
| Unicel | 7CH-552 |
| Filbur | FC-0465 |
| OEM | 1561-10 |
| Other | |
| CH65 | |
|---|---|
| Description | DIMENSION ONE 65 |
| Diameter(mm) | 118 |
| Length(mm) | 498 |
| Top | Handle |
| Bottom | 46mm MPT (fine) Thread |
| Replaces | |
|---|---|
| Pleatco | |
| Unicel | 4CH-65 |
| Filbur | |
| OEM | |
| Other | |
| D15249 | |
|---|---|
| Description | DIMENSION ONE 75 49mm |
| Diameter(mm) | 178 |
| Length(mm) | 267 |
| Top | Handle |
| Bottom | 49mm SAE (coarse) thread |
| Replaces | |
|---|---|
| Pleatco | PDO75P3 |
| Unicel | 7CH-975 |
| Filbur | FC-0475 |
| OEM | 1561-12 |
| Other | |

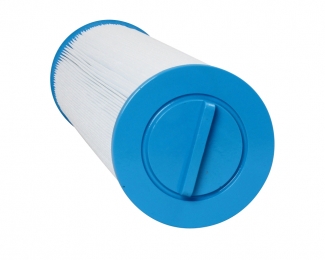

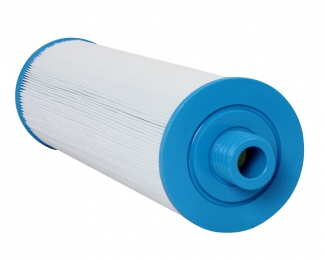

| D136 | |
|---|---|
| Description | DIMENSION ONE C36 |
| Diameter(mm) | 118 |
| Length(mm) | 375 |
| Top | Handle |
| Bottom | 40mm SAE (coarse) THREAD |
| Replaces | |
|---|---|
| Pleatco | PDO-UF40P2 |
| Unicel | 4CH-940 |
| Filbur | FC-0177 |
| OEM | 1561-13 |
| Other | |
